FortisForm300
Profitable even at small batch sizes.
Profitable. Without volume dependency.
The roll forming system for modern steel processing—economical, flexible, and robust. C-, Z-, and U-profiles from 80 to 300 mm in width are formed with consistent precision. Switching between C and Z takes only a few minutes, while material thickness and lengths can be adjusted digitally. With production speeds of up to 32 m/min, a servo drive, and an automatic straightening unit, Fortis delivers stable quality with minimal setup effort
Flexible, High-Precision Roll
Forming with
Rapid Profile Changeover
The FortisForm 300 pro is a high-performance roll forming system designed for efficient production of C, Z and U profiles, combining high forming speed, precise punching and fast digital size changeover in a compact and robust machine design.
FortisForm 300 pro produces C and Z profiles at high speed with integrated pre-punching and cutting, ensuring accurate length and hole positioning. Its digital size adjustment and quick-change CZ modules enable fast profile change overs with minimal downtime.
Technical Description
The FortisForm 300 pro is an automated roll forming machine for cold-formed steel profiles, engineered for industrial production of structural C and Z sections.

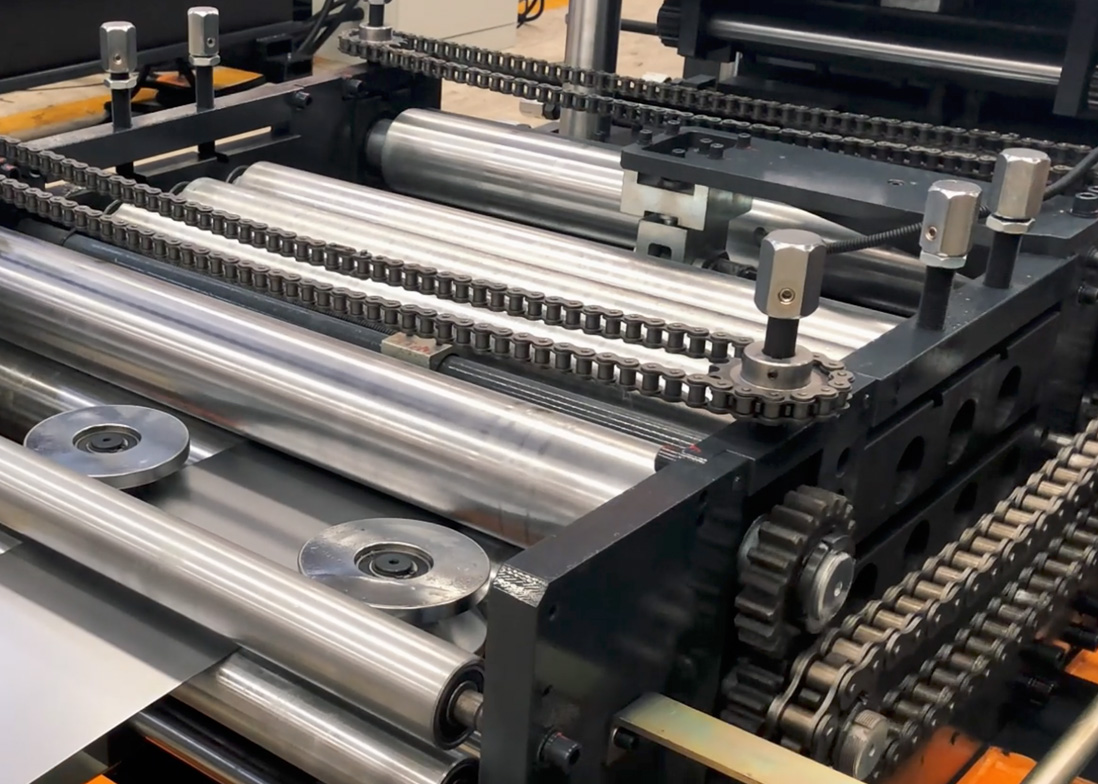

The system integrates decoiling, feeding, leveling, hydraulic pre-punching, roll forming, post-cutting and material outfeed into one continuous production line.

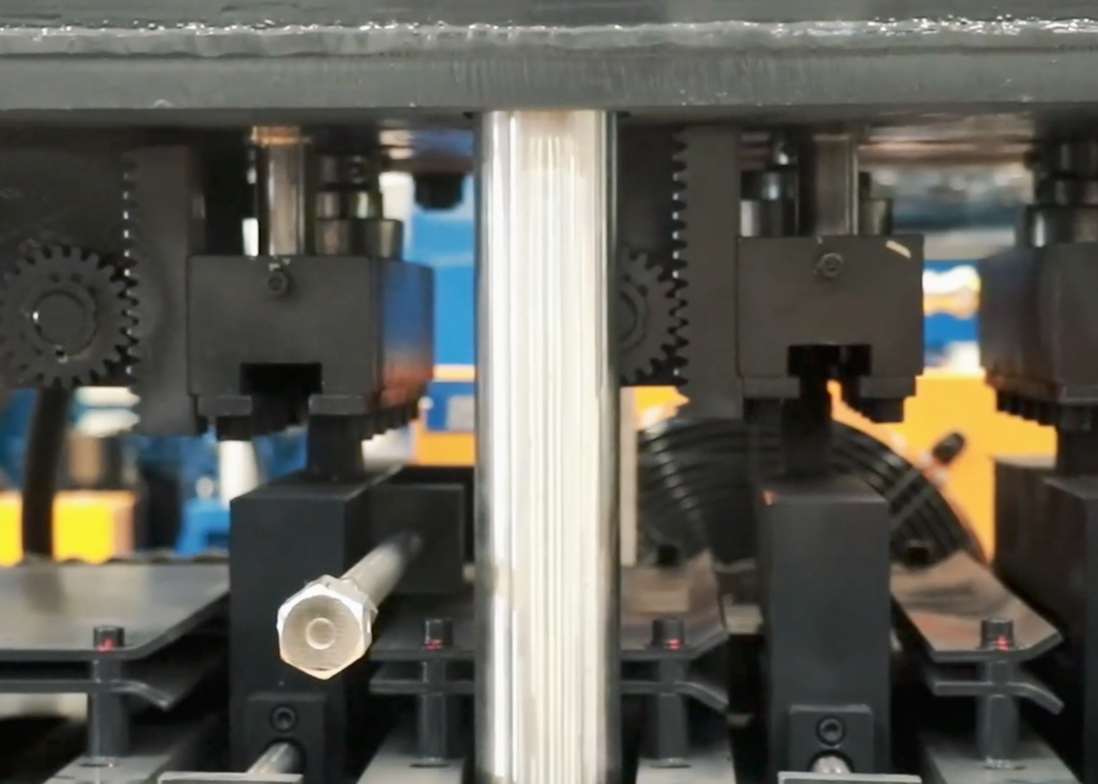

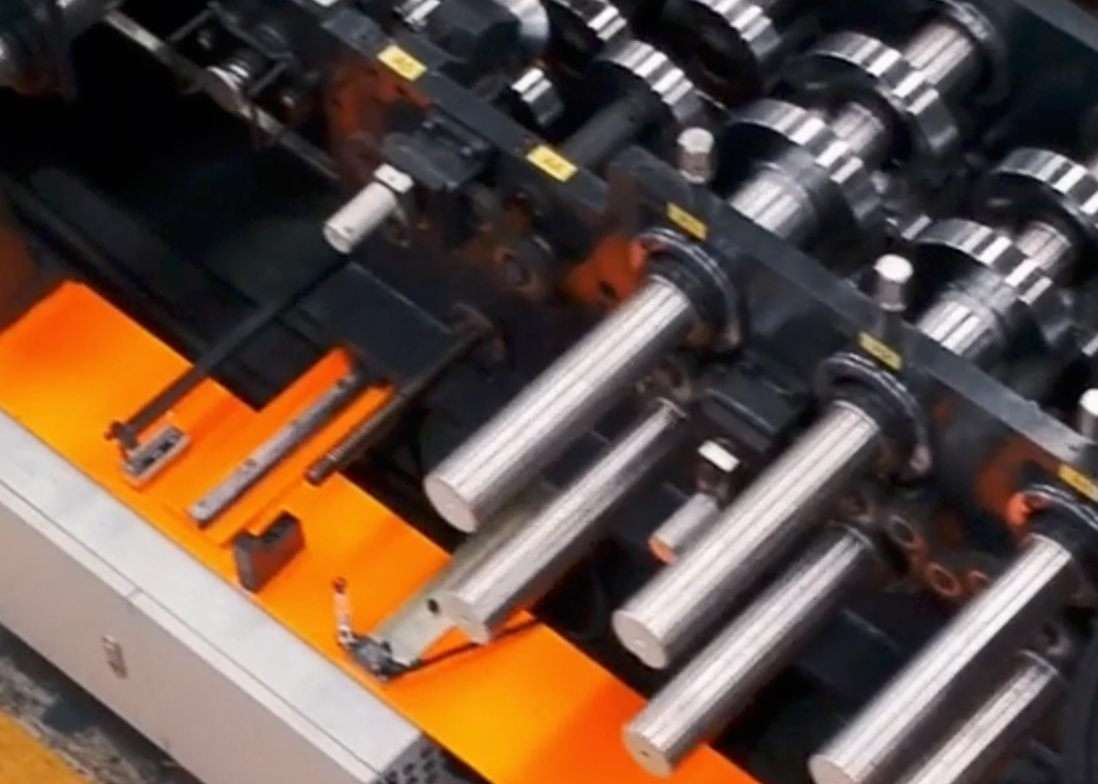

A servo-driven roll forming system with 21 forming stations ensures consistent profile geometry, while integrated hydraulic punching allows flexible hole patterns without secondary operations.
Digital size control and one-key profile changeover significantly reduce setup times, while the industrial PC-based control system ensures precise length control and repeatable production results.
Profiles | Materials
Materials
- Hot-rolled steel strip (Q195, Q235, Q355)
- Hot-rolled galvanized steel strip
- Thickness range: 1.0 – 3.0 mm
- Yield strength up to 550 MP a (≤ 2.0 mm thickness)
Typical profile Dimensions
- C profiles
- Width: 80 – 300 mm
- Height: 30 – 100 mm
- Lip: 8 – 20 mm
- Z profiles
- Width: 120 – 300mm
- Height: 30 – 100 mm
- Lip: 8 – 20 mm
Standard inner angle: 135° (90° optional)
- U profiles (optional, thickness ≤ 2.0 mm)
Features
Integrated decoiler, leveling, feeding and roll forming line
Hydraulic pre-punching with up to 5 punching stations
Servo-driven roll forming system (30 kW main motor)

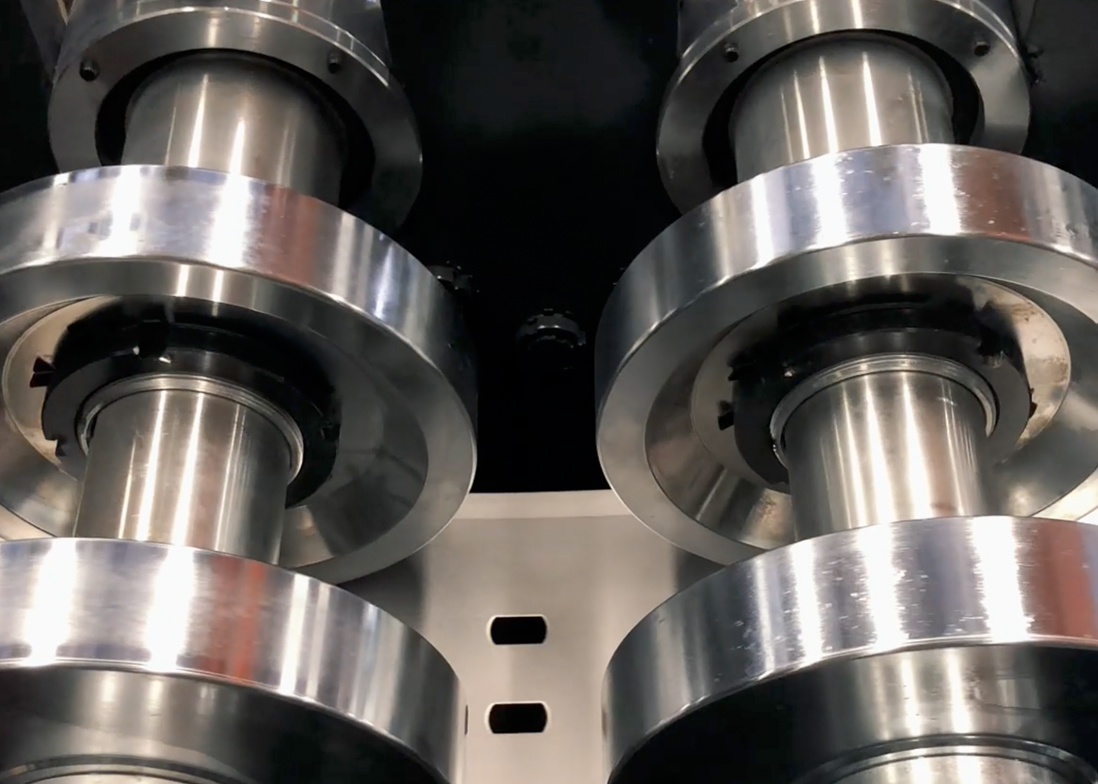

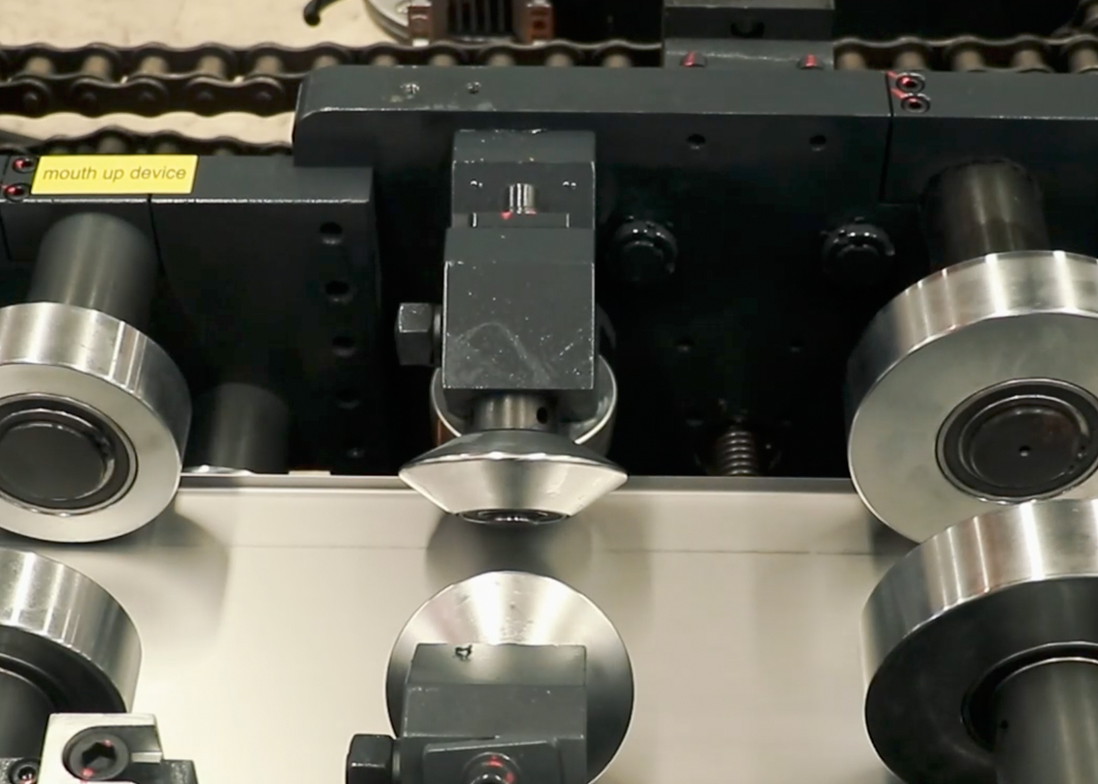

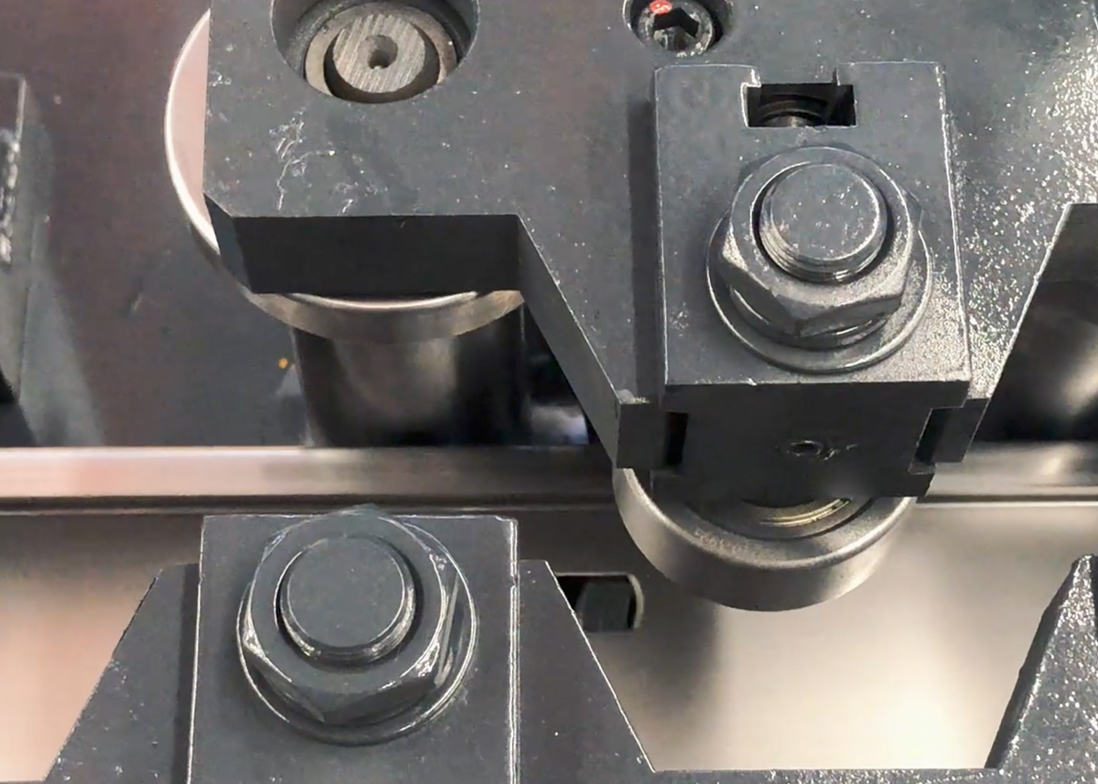

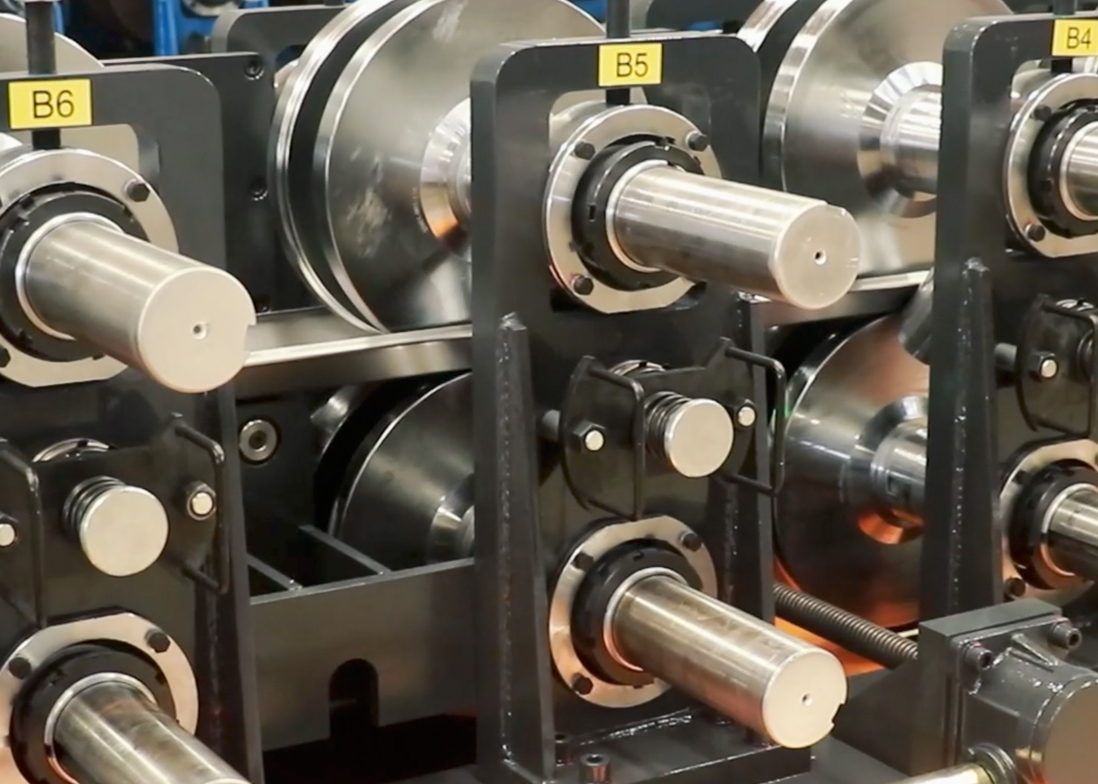

21 forming stations with support rollers
Digital size adjustment with one-key model change
Quick change from C to Z profile (approx. 2 minutes)
Adjustable Z-profile lip angle (90° / 135°)
High forming speed up to 32 m/min

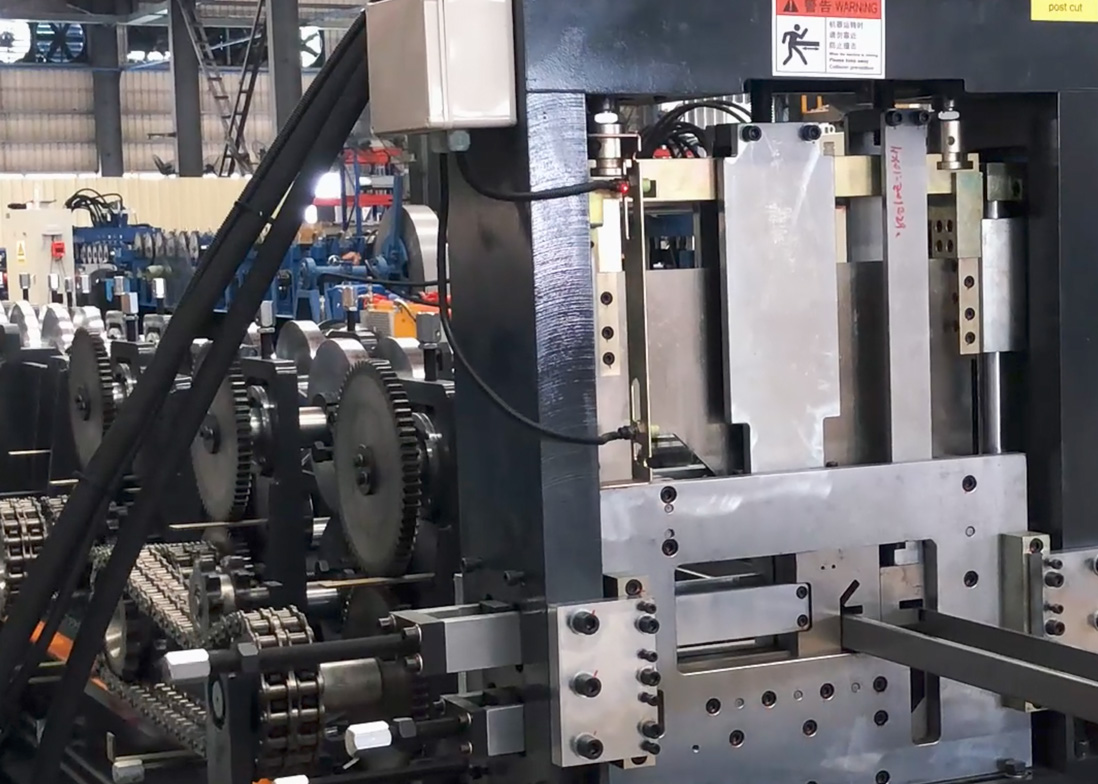

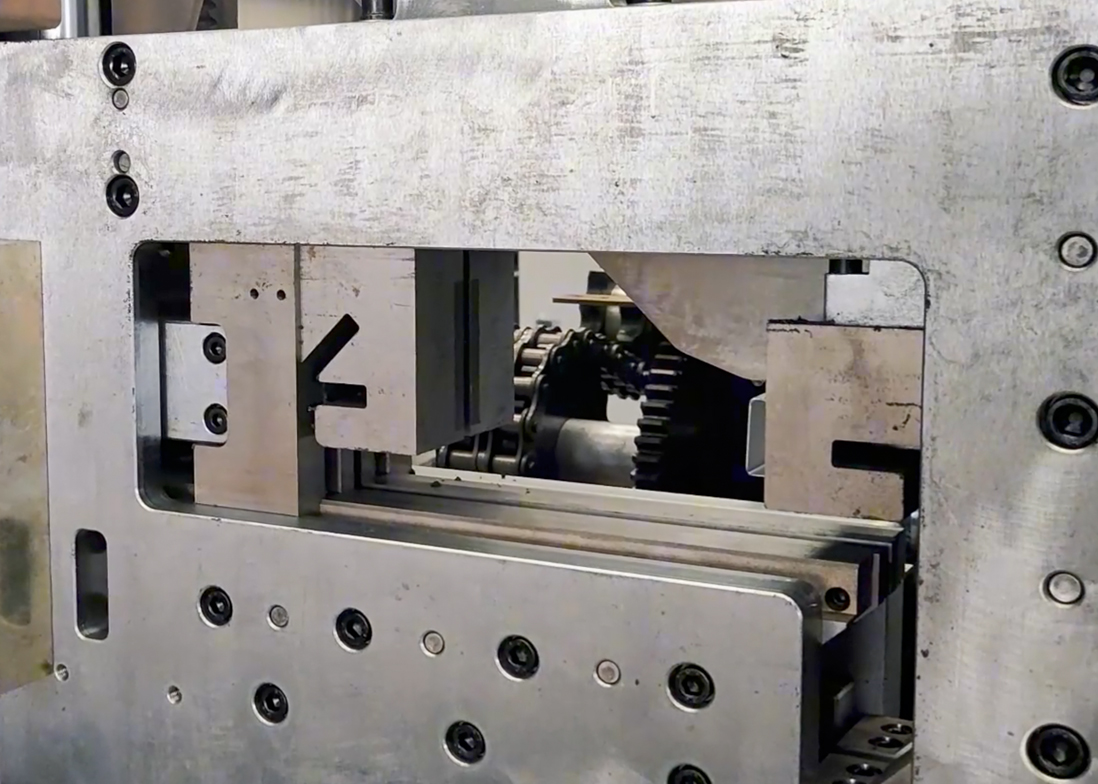

Integrated pre-cutting and post-cutting systems
Wireless remote control for setup and operation
Centralized hydraulic and electrical control system
Data Import via XBIM / QR / USB / Network
