CometCut500
Flexibility instead of tool dependency.
One system. Full flexibility.
The CometCut replaces the traditional punch-and-shear line and extends it to cover profile processing in the smaller segment – with the precision and flexibility of laser technology. Square tubes, open profiles, or flat material: one system for the entire range up to 250 × 250 mm.
High-Precision Laser Cutting.
For Flat Steel.
Angles and Structural Profiles.
The CometCut Series is engineered for efficient, high-accuracy cutting of different material. Its unique static material clamping concept combined with a rotating cutting head ensures exceptional cutting stability, accuracy and productivity – even on heavy and long workpieces.

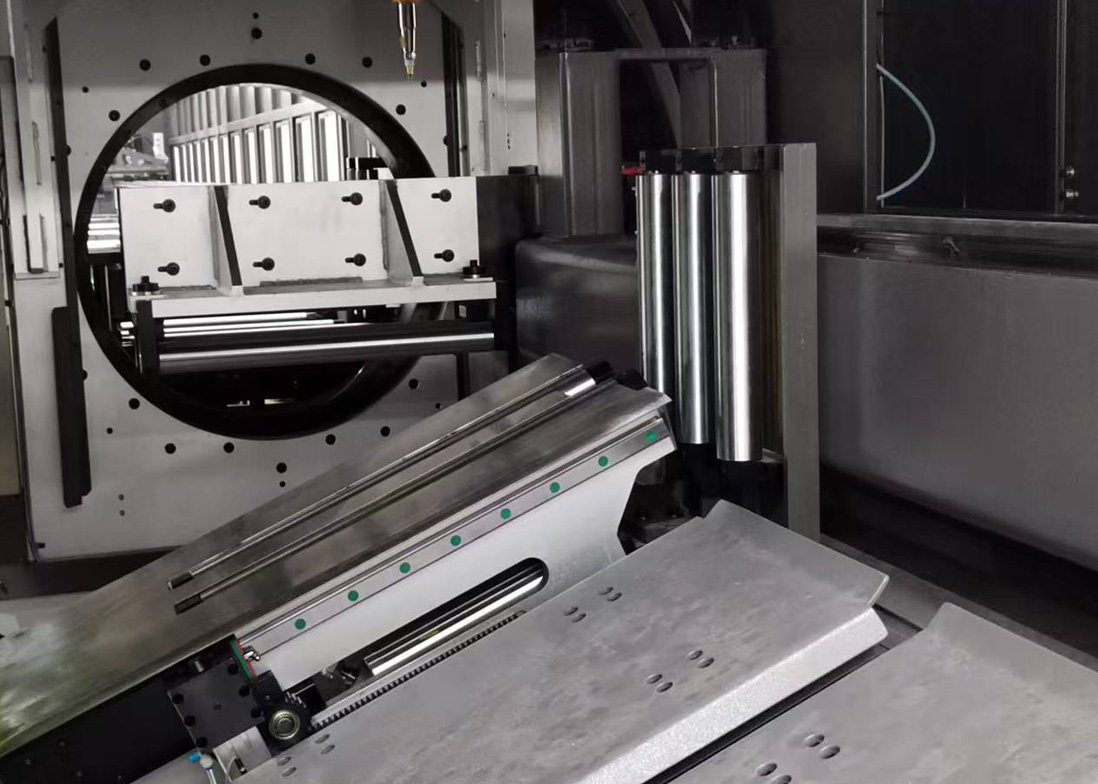

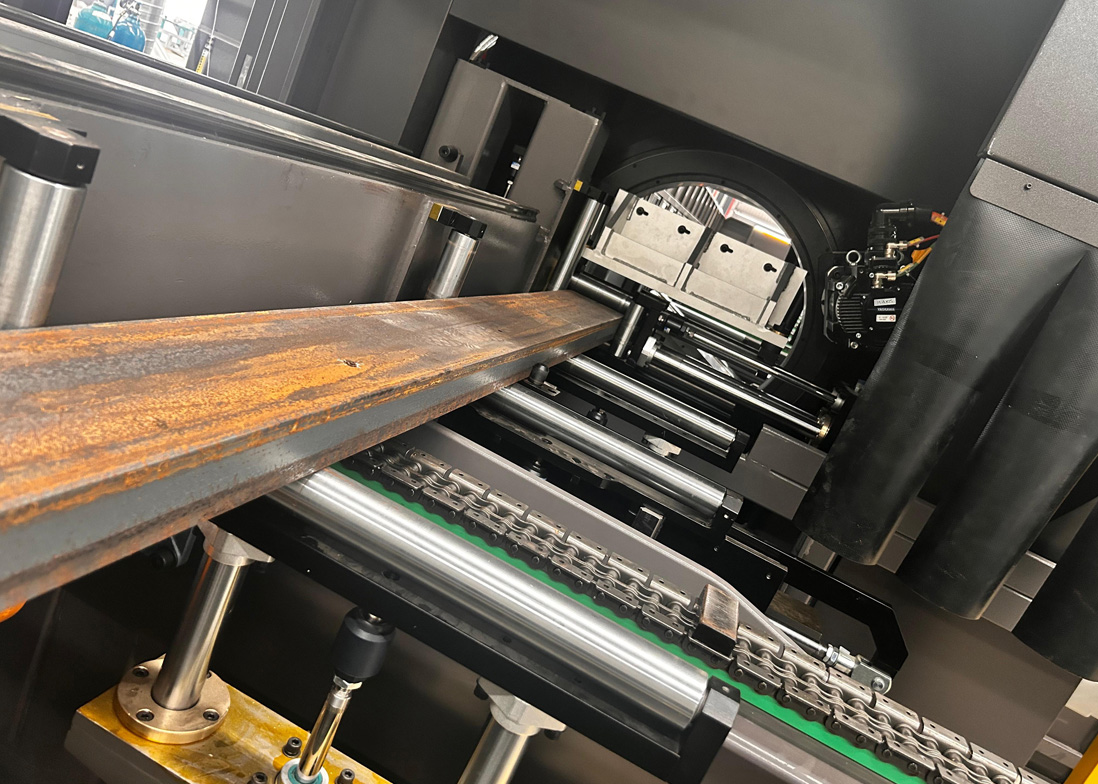

The CometCut Series processes material with the material fixed in position while the cutting head rotates around the workpiece. This concept eliminates material movement during cutting, ensuring superior precision, clean edges and minimal waste.
Technical Description
The CometCut Series is a CNC-controlled fiber laser cutting system designed for processing in the steel fabrication industry.

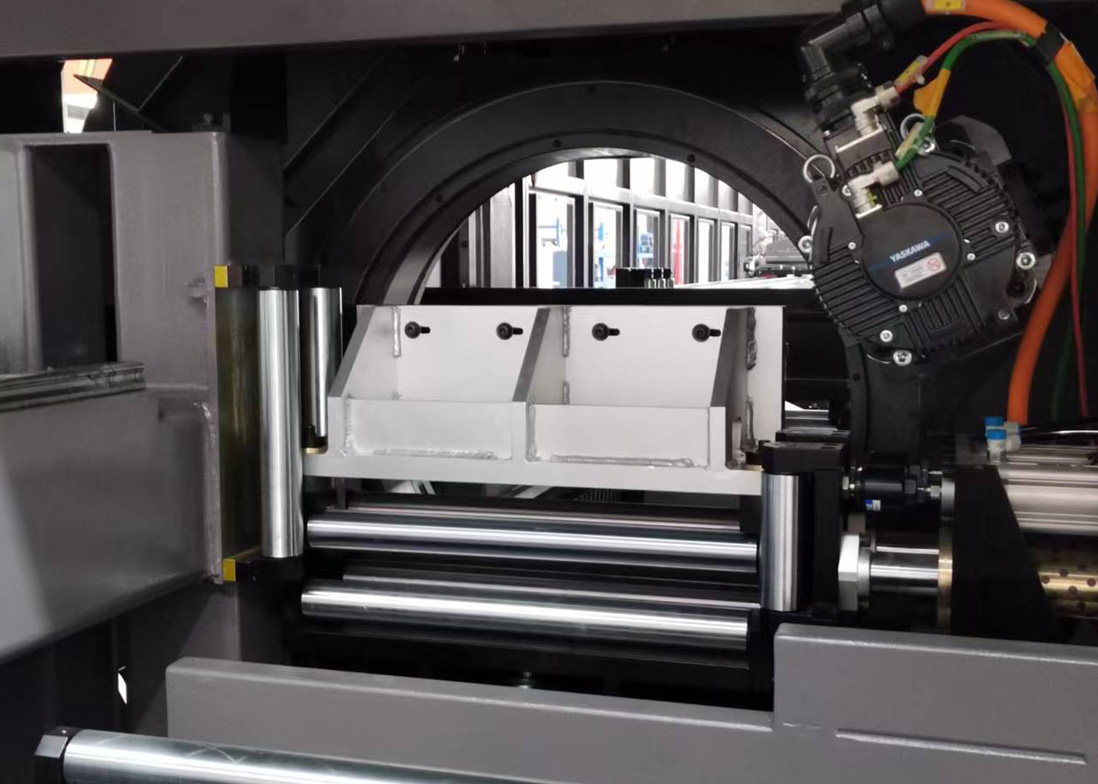

Unlike conventional rotating-material systems, the CometCut uses static material fixation while the cutting head rotates up to 250°, allowing precise contour cutting without torsion or deflection of the workpiece.
The system supports automatic loading, measuring, clamping, cutting and unloading of heavy profiles up to 12 meters in length.
Advanced CNC motion control, frog-jump path optimization, and adaptive feed speed adjustment ensure high cutting speed while maintaining excellent dimensional accuracy and edge quality.
The enclosed cutting cell, integrated fume extraction, and modular machine design make the CometCut Series suitable for continuous industrial operation with high safety standards.
Profiles | Materials
The CometCut Series is designed for cutting:
- Carbon steel and mild steel (standard configuration)
Typical Profile Dimensions
- Material length: 2.500 – 12.000 mm
- Product length: 10 – 12.000 mm
- Material weight: 1.200 kg/piece or 100 kg/m
Data Import
- DSTV
- STEP
- IFC, etc.
Features
Static material clamping with rotating cutting head (±250°)

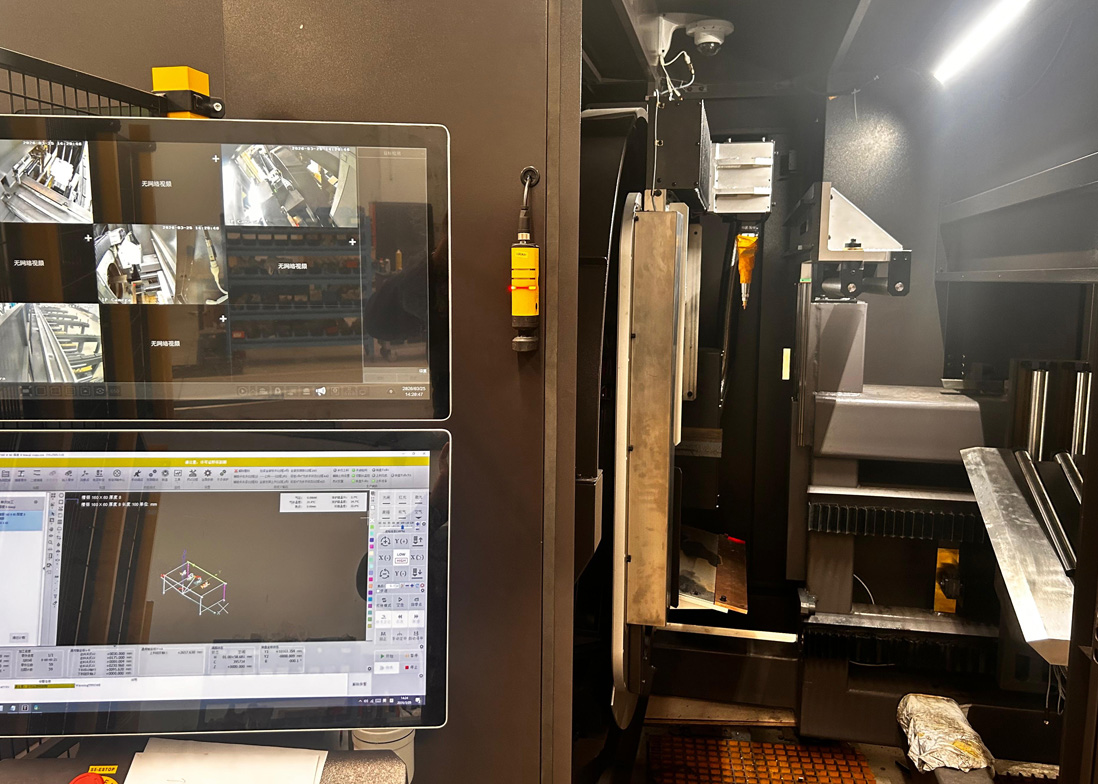

High-precision CNC control with adaptive feed and cutting speed

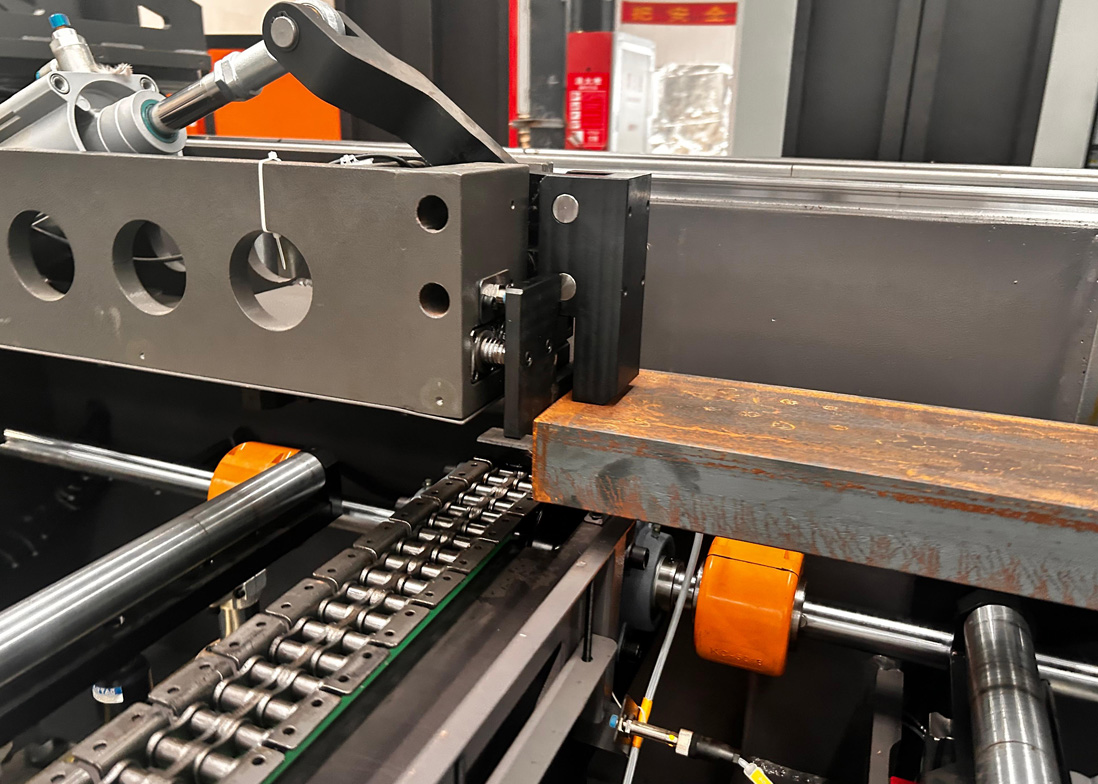

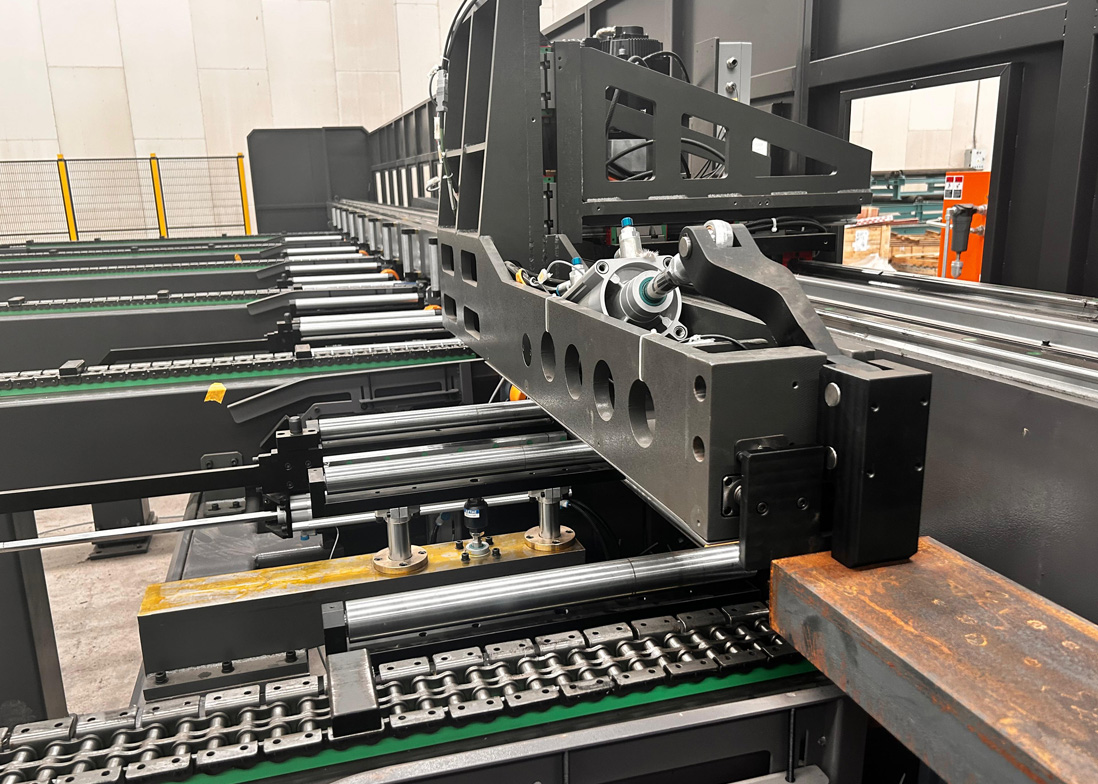

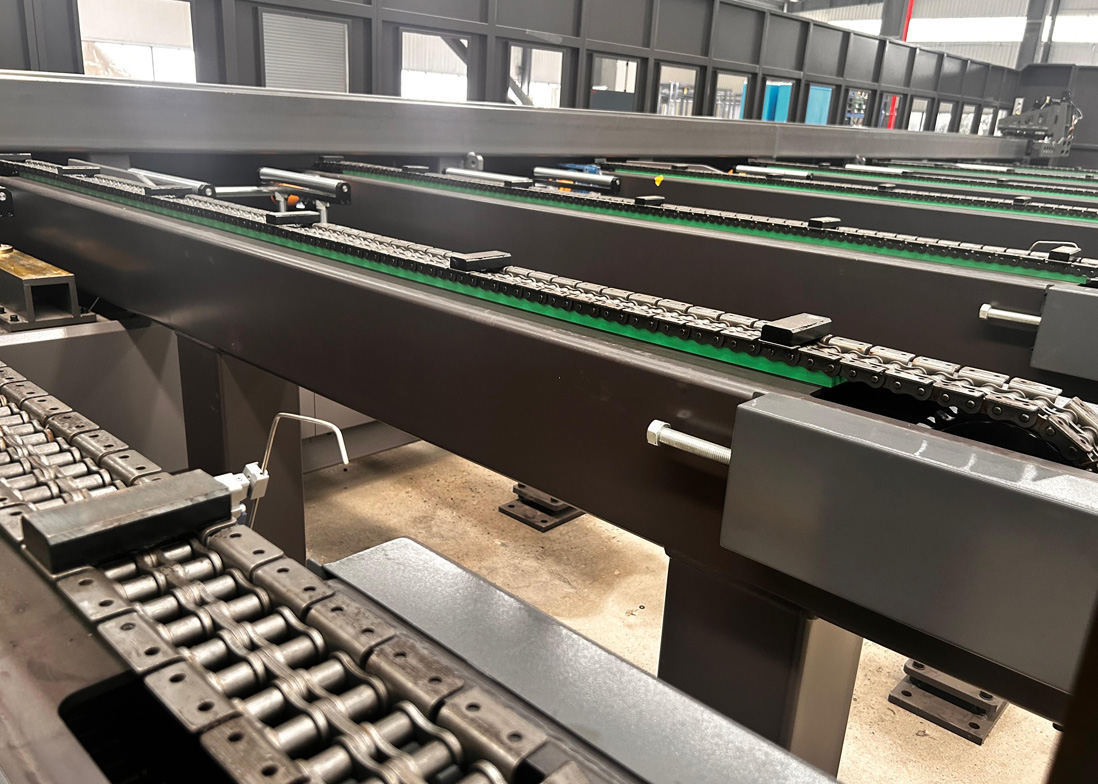

Automatic material loading, measuring and alignment

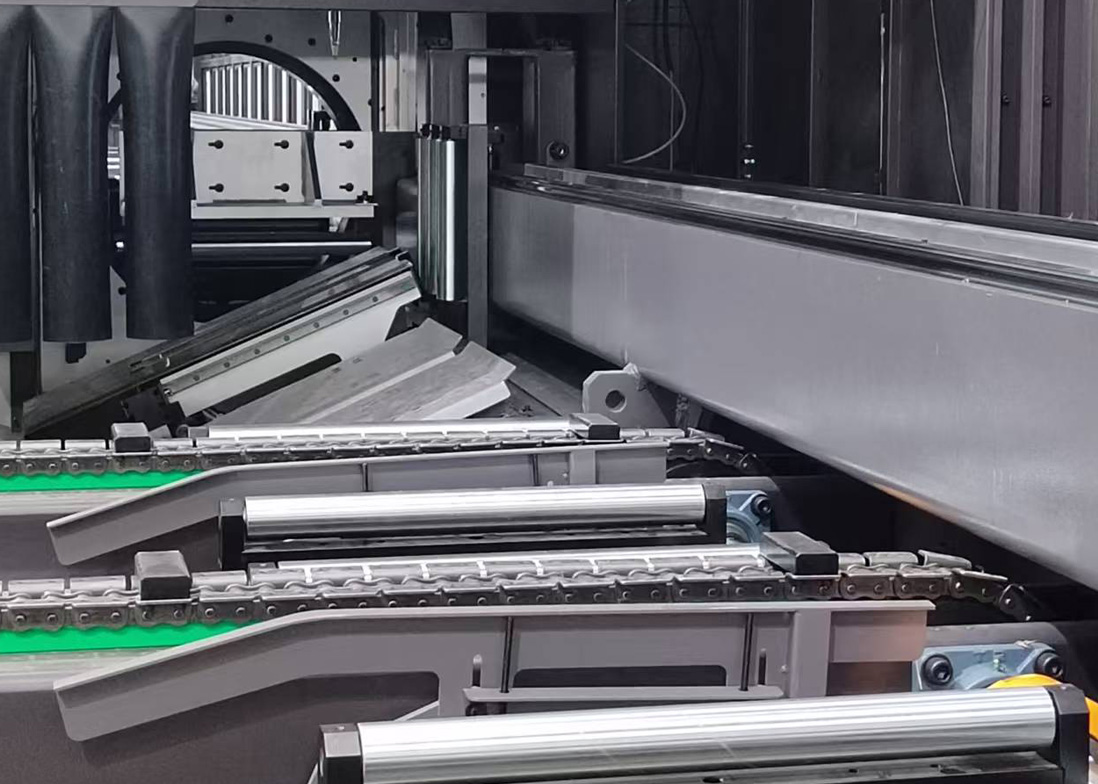

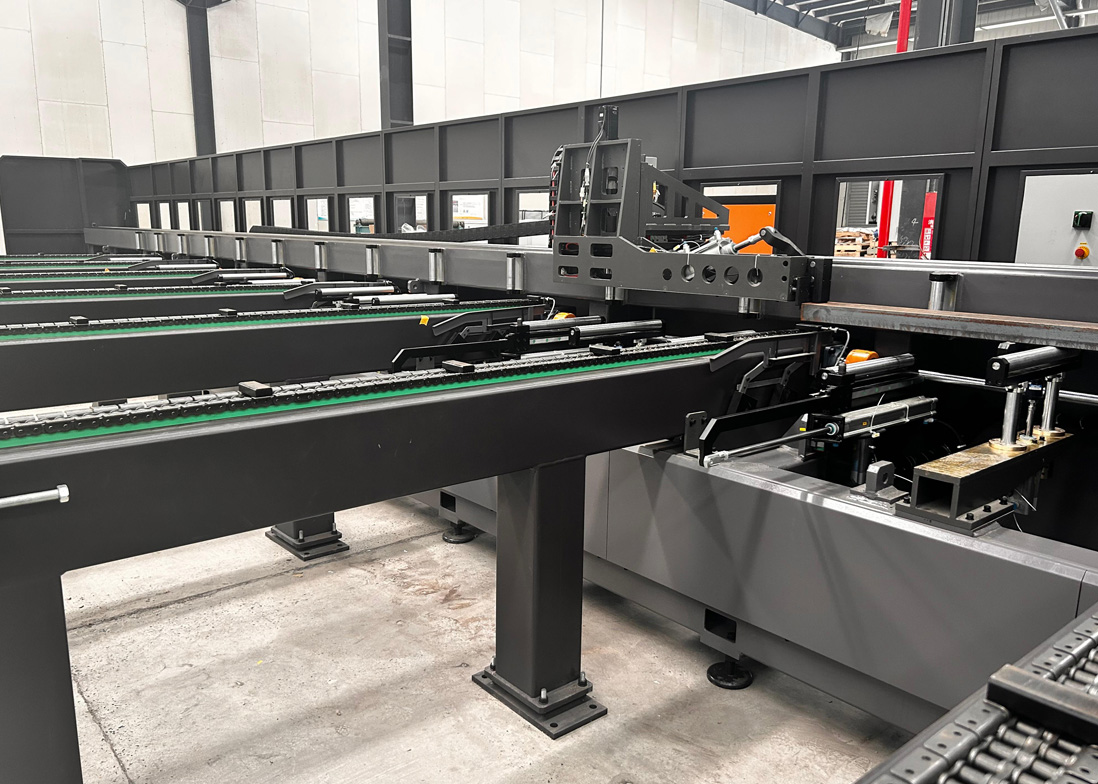

Intelligent unloading system for short, medium and long parts
Frog-jump motion for collision-free rapid positioning
Heavy-duty machine frame for long and heavy profiles
Integrated dust extraction and waste collection
High-efficiency industrial fiber laser source (12 kW / 20 kW)

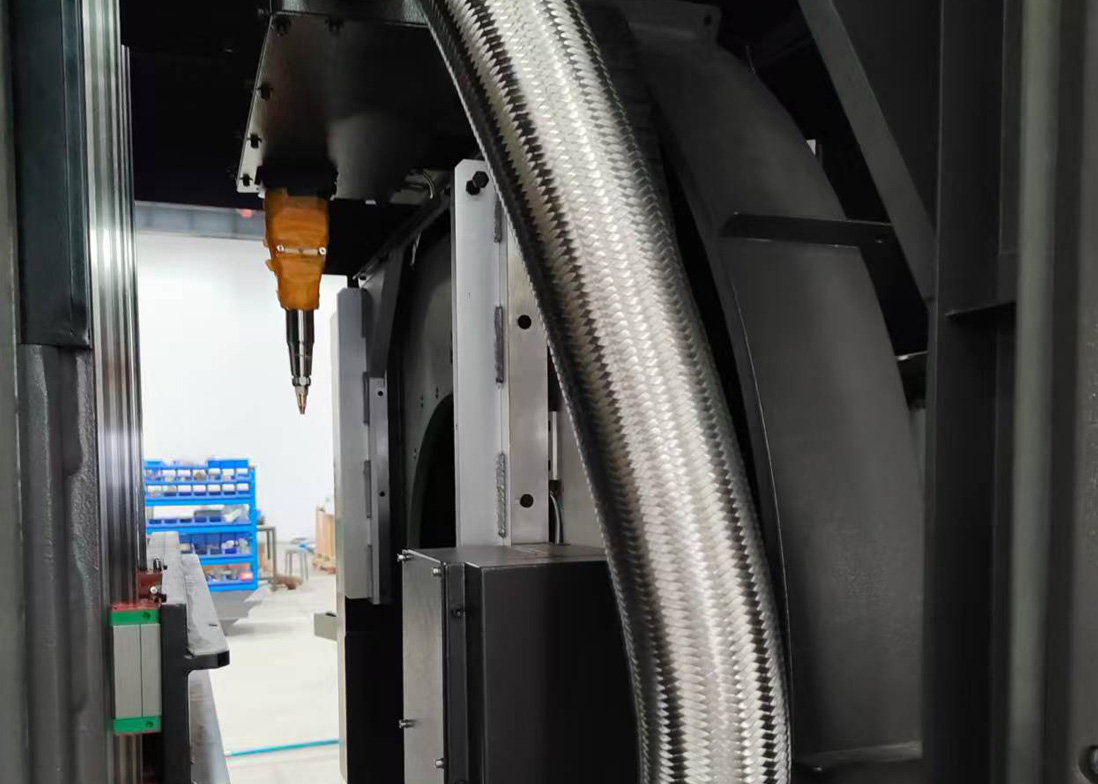

Precision laser cutting head with real-time monitoring
Centralized automatic lubrication system
