CobraCut360
Productivity in the mid-range.
Productivity. Where it matters.
For profiles from 50 to 360 mm in width and lengths up to 12 m. The CobraCut 360 delivers full flexibility for the typical dimensions in steel construction – fast, precise, and reliable.
High-Performance Fiber Laser
Cutting for
Profiles and Tubes
The CobraCut360 combines advanced fiber laser technology with heavy-duty machine design to deliver precise, flexible, and highly efficient cutting of open profiles and tubes in the structural steel sections – optimized for modern steel fabrication.
The CobraCut360 enables high-precision cutting, beveling, and marking of steel profiles and tubes in one automated process. Its four-chuck system, intelligent centering, and advanced software ensure maximum material utilization, welding-ready edges, and consistent cutting quality.
Technical Description
The CobraCut360 is a CNC-controlled fiber laser profile cutting machine designed for continuous industrial operation in steel fabrication environments.

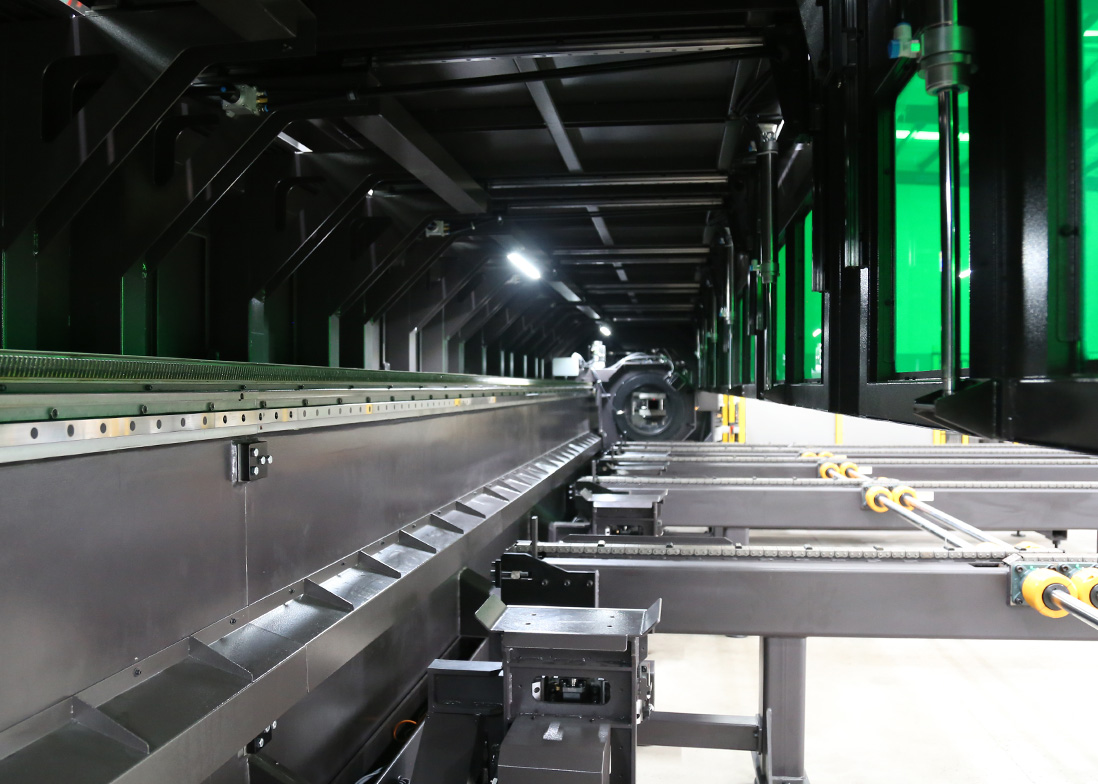

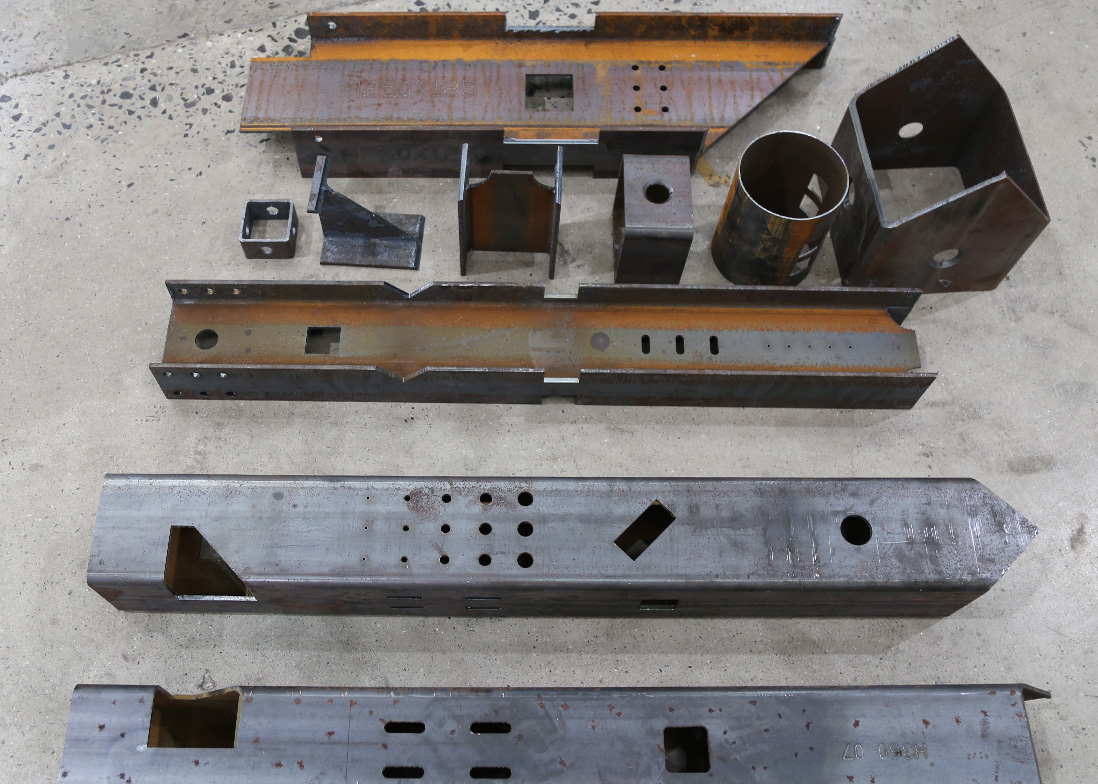

Equipped with a synchronized four-chuck system, automatic centering during processing, and a 3D bevel cutting head, the machine enables precise cutting of round, square, rectangular tubes, and open profiles with minimal residual material.
The system supports bevel cuts up to 45° (X, K, Y types) and optional laser marking. Intelligent path optimization, rapid leap motion, and real-time Z-axis compensation significantly reduce idle times while maintaining high dimensional accuracy.

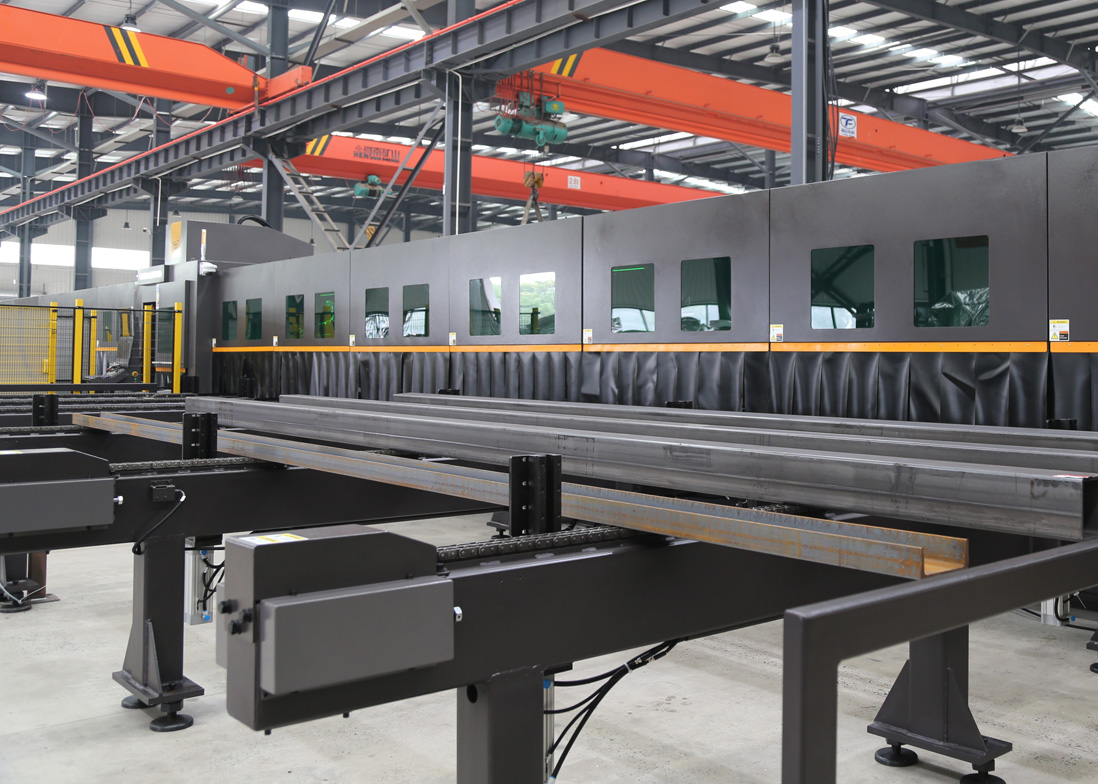

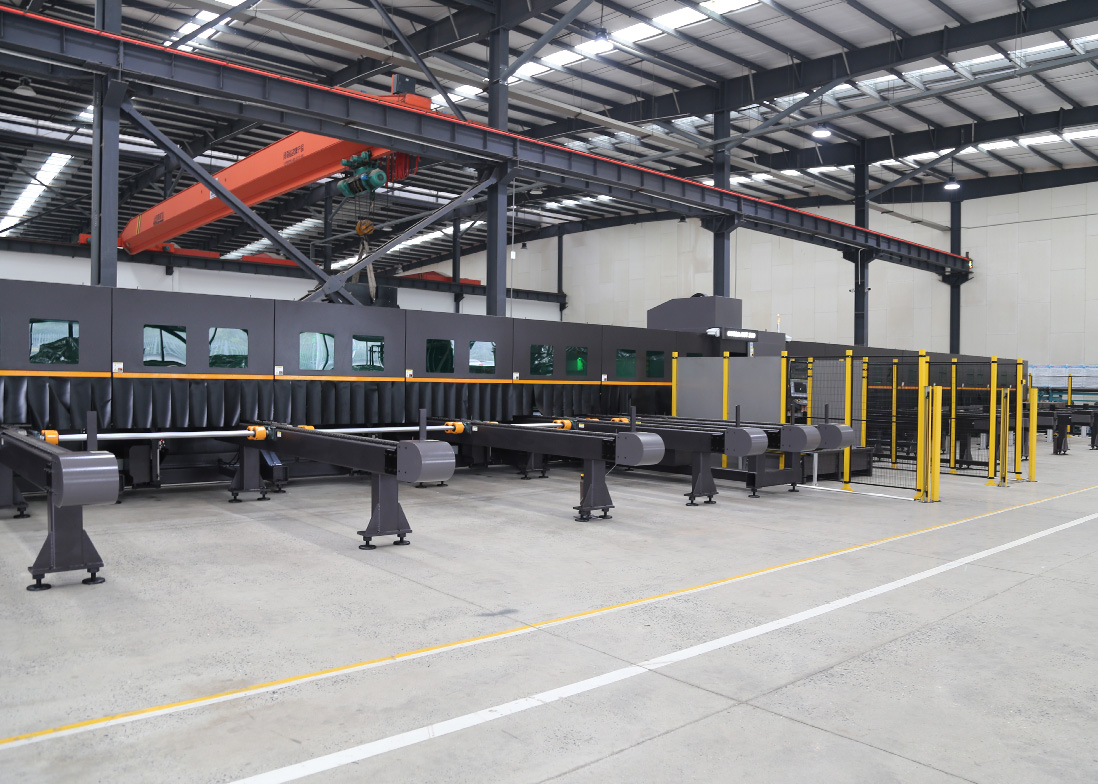

A fully enclosed safety cabin, heavy-duty welded machine bed, and modular design ensure long-term stability, safety, and serviceability.
Profiles | Materials
The CobraCut360 is designed for cutting:
- Carbon steel and mild steel (standard configuration)
Typical Profile Dimensions
- Material length: 2.500 – 12.000 mm
- Product length: 3 – 12.00 mm
- Material weight:
- 550: 2.200 kg/piece or 183 kg/m
- 360: tba
Features

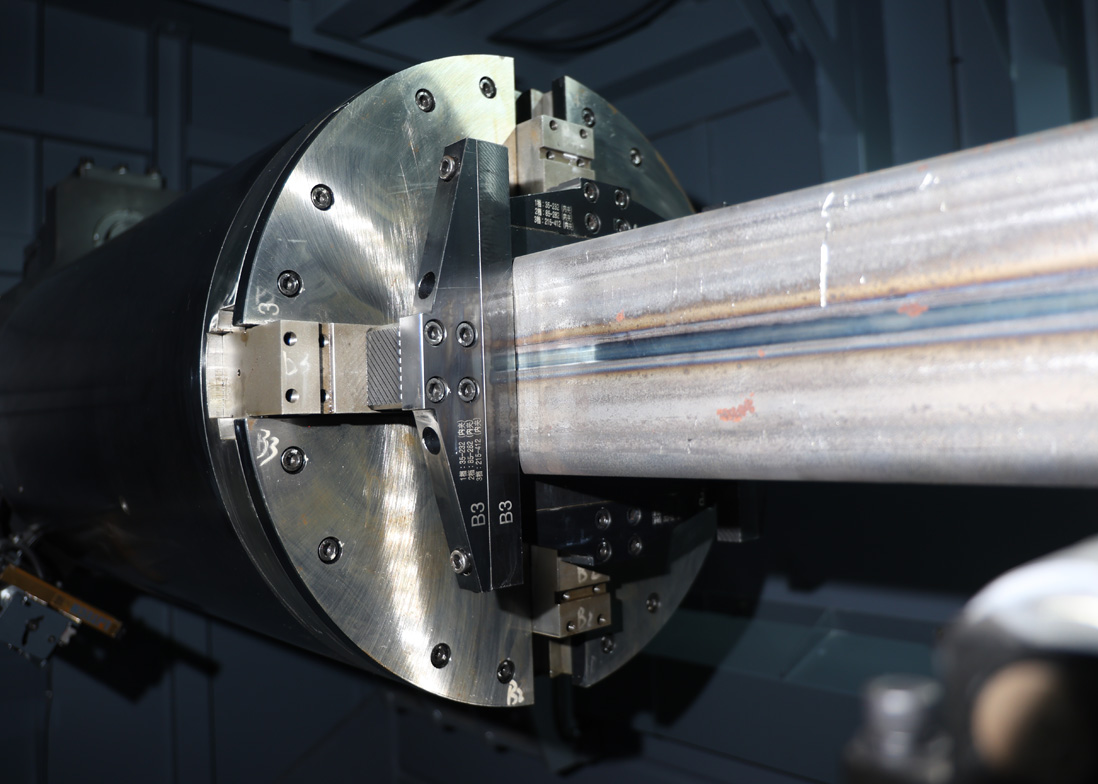

Four-chuck synchronized clamping system with minimal residual length
Bevel cutting up to 45° (X, K, Y bevels)
Automatic real-time centering and deviation compensation

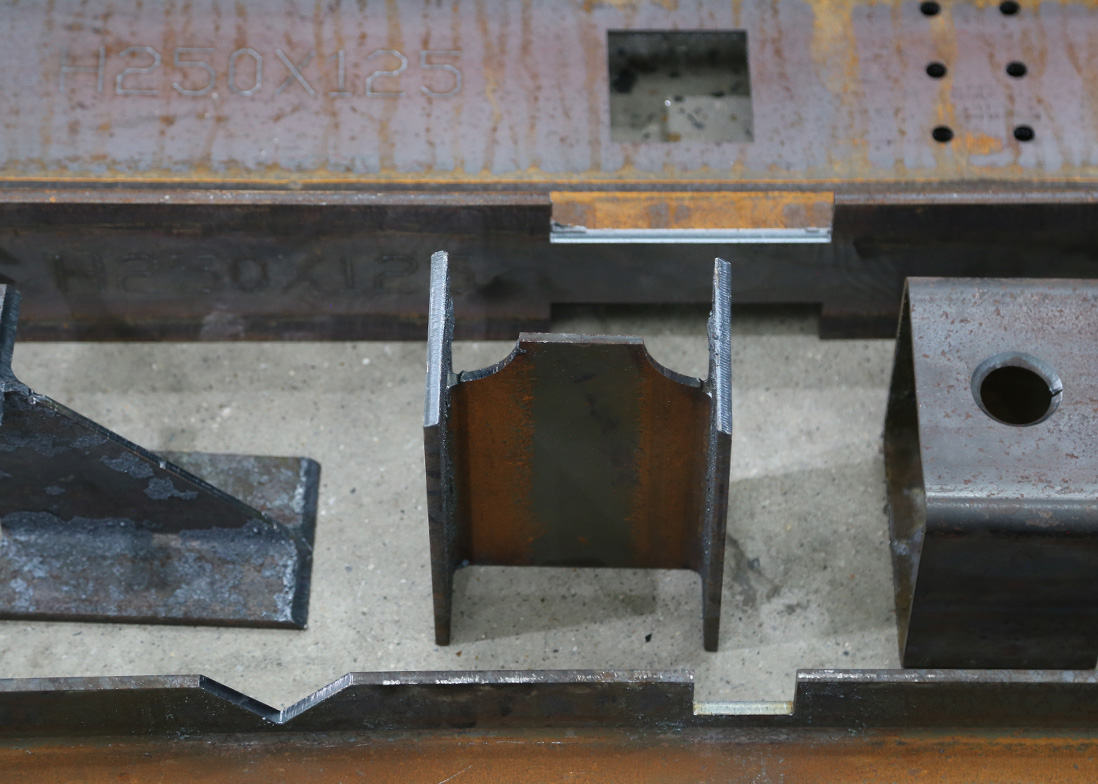

Advanced corner cutting technology for square and rectangular profiles
R-corner correction for improved welding fit-up
Rapid leap motion for reduced non-cutting time
Heavy-duty welded machine bed for high rigidity and accuracy

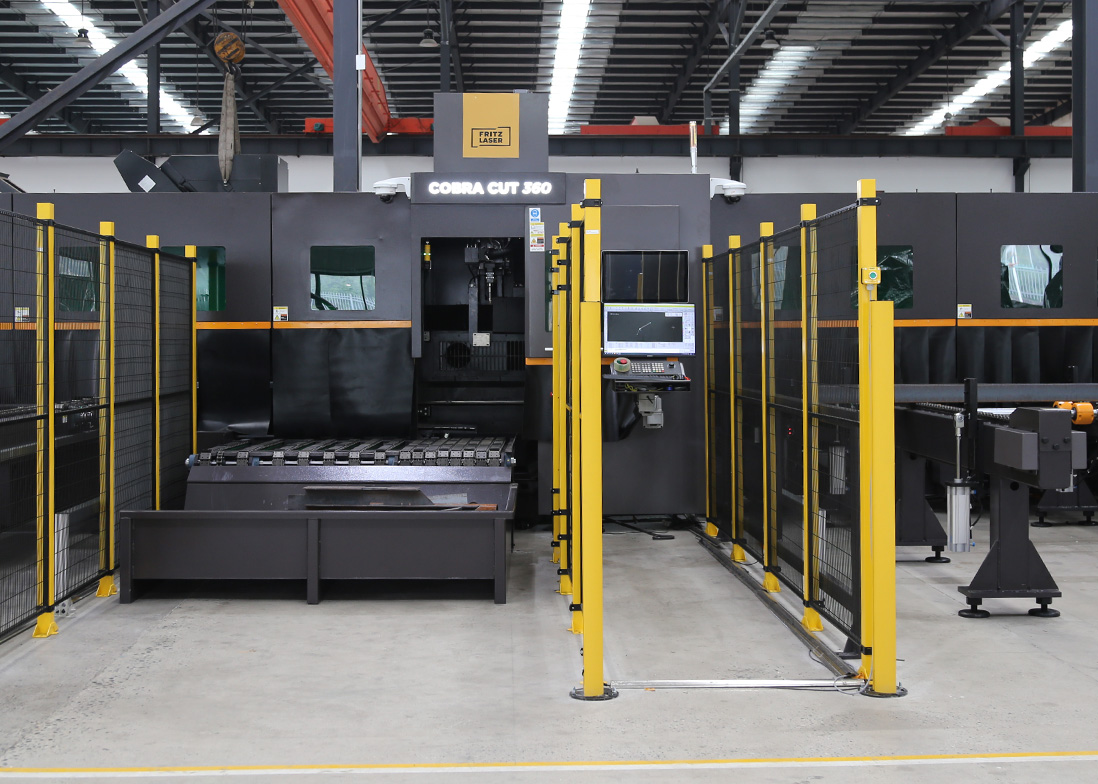

Fully enclosed laser safety cabin with modular access panels
Industrial fiber laser source optimized for carbon steel cutting
Compatibility with common steel construction file formats (DSTV, STEP, IFC, etc.)
